Plastic PPR Pipe Making Machine PPR Pipe Production Line Plastic Pipe Extrusion Machine
Introduction:
The Plastic PPR Pipe Making Machine is a high-efficiency production line designed for manufacturing Polypropylene Random Copolymer (PPR) pipes, widely used in plumbing, heating, and industrial fluid transportation systems. This advanced PPR Pipe Production Line integrates cutting-edge extrusion technology, precise temperature control, and automated processes to ensure consistent pipe quality, durability, and smooth surfaces. The machine covers all production stages—from raw material feeding, extrusion, sizing, cooling, printing, to cutting—delivering high-performance PPR pipes in various diameters and thicknesses. Ideal for manufacturers seeking reliability, energy efficiency, and high output.
Extrusion line details:
Loader → Dryer → Single-screw Extruder→ Mould→ Vacuum &Spraying Cooling Tank →Hauling-off → Cutter/Winder → Pipe stacker
Material Feeding & Drying
PPR resin pellets are loaded into the hopper and automatically fed into the drying system to remove moisture, ensuring optimal extrusion quality.

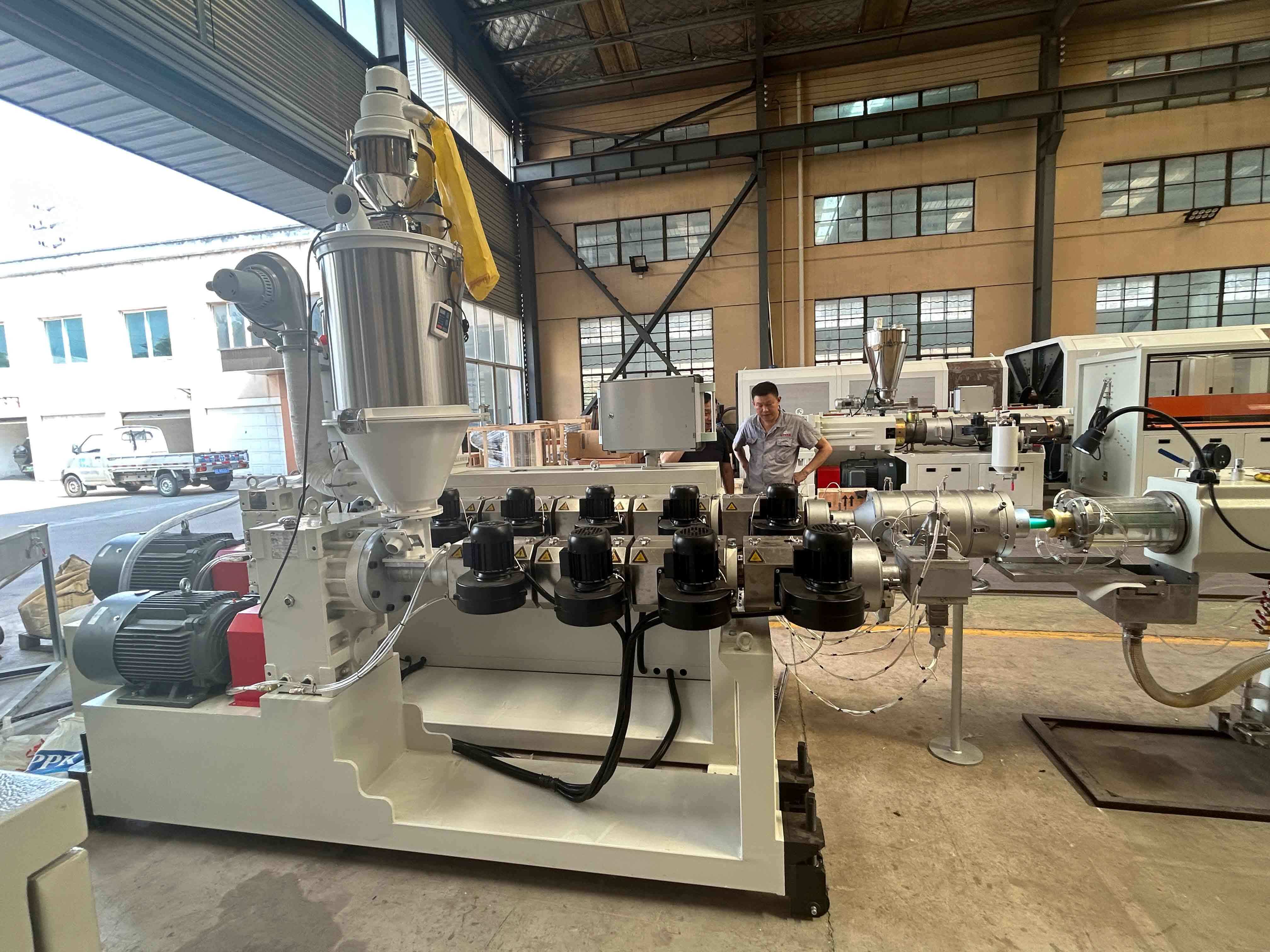

Extrusion
The dried material is melted in a single-screw or twin-screw extruder with precise temperature control.
The molten PPR is pushed through a pipe die head to form a continuous pipe shape.

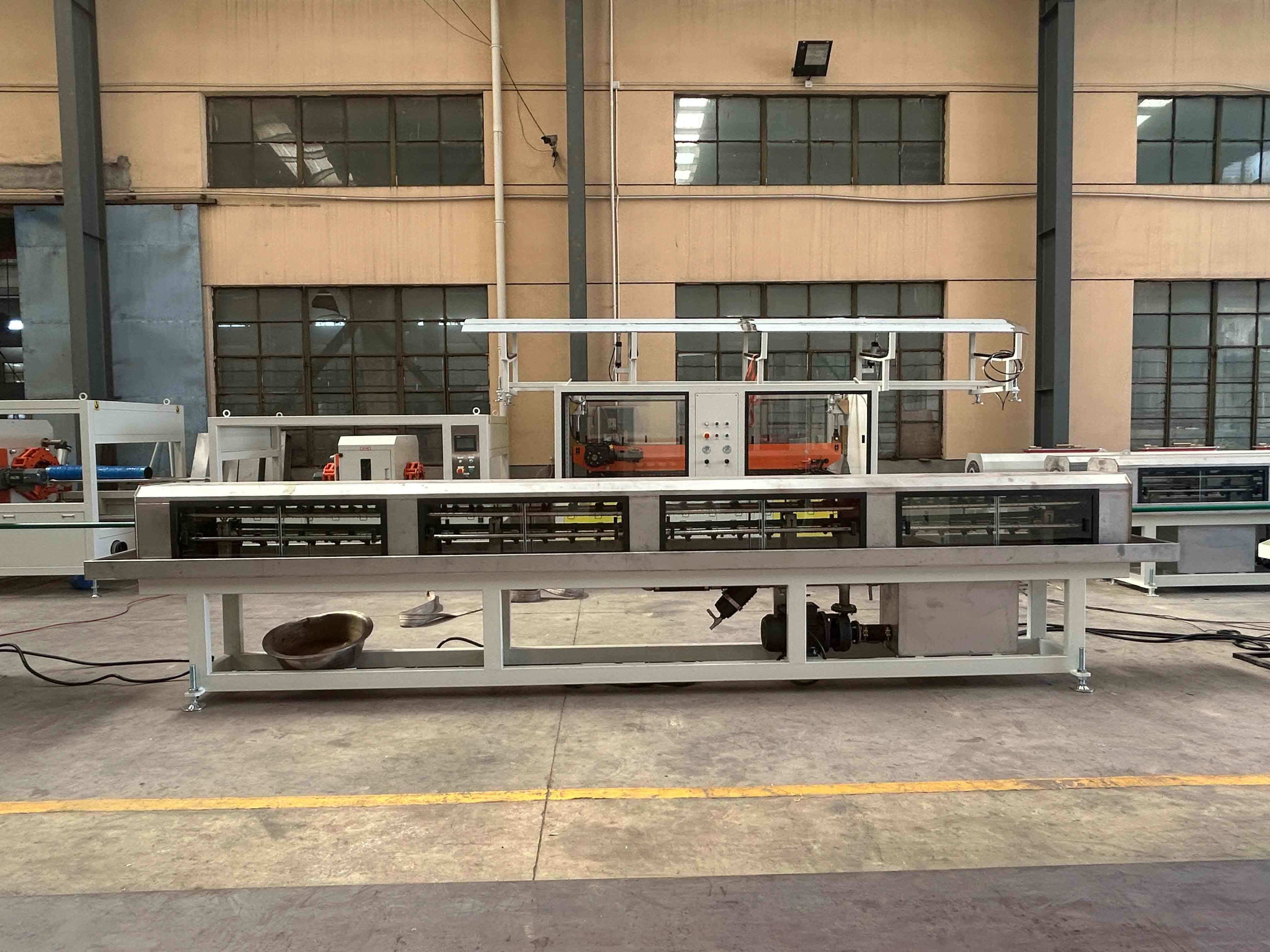

Vacuum Calibration & Cooling
The pipe enters a vacuum calibration tank to stabilize the diameter and wall thickness.
It then passes through a cooling water tank to solidify the structure.
Hauling & Cutting
A haul-off machine pulls the pipe at a controlled speed to maintain uniformity.
An automatic cutting machine cuts the pipe to the required lengths.
Printing & Stacking
A printing machine marks the pipe with specifications (size, pressure rating, brand, etc.).
The finished pipes are collected by an automatic stacking machine for packaging.
Quality Inspection
Each pipe undergoes dimensional checks, pressure testing, and visual inspection to ensure compliance with industry standards.
Features
High Efficiency & Output – Automated operation ensures fast production speeds, maximizing productivity.
Precision Extrusion – Advanced screw design and temperature control guarantee uniform pipe wall thickness and superior strength.
Energy-Saving – Optimized heating and cooling systems reduce power consumption while maintaining performance.

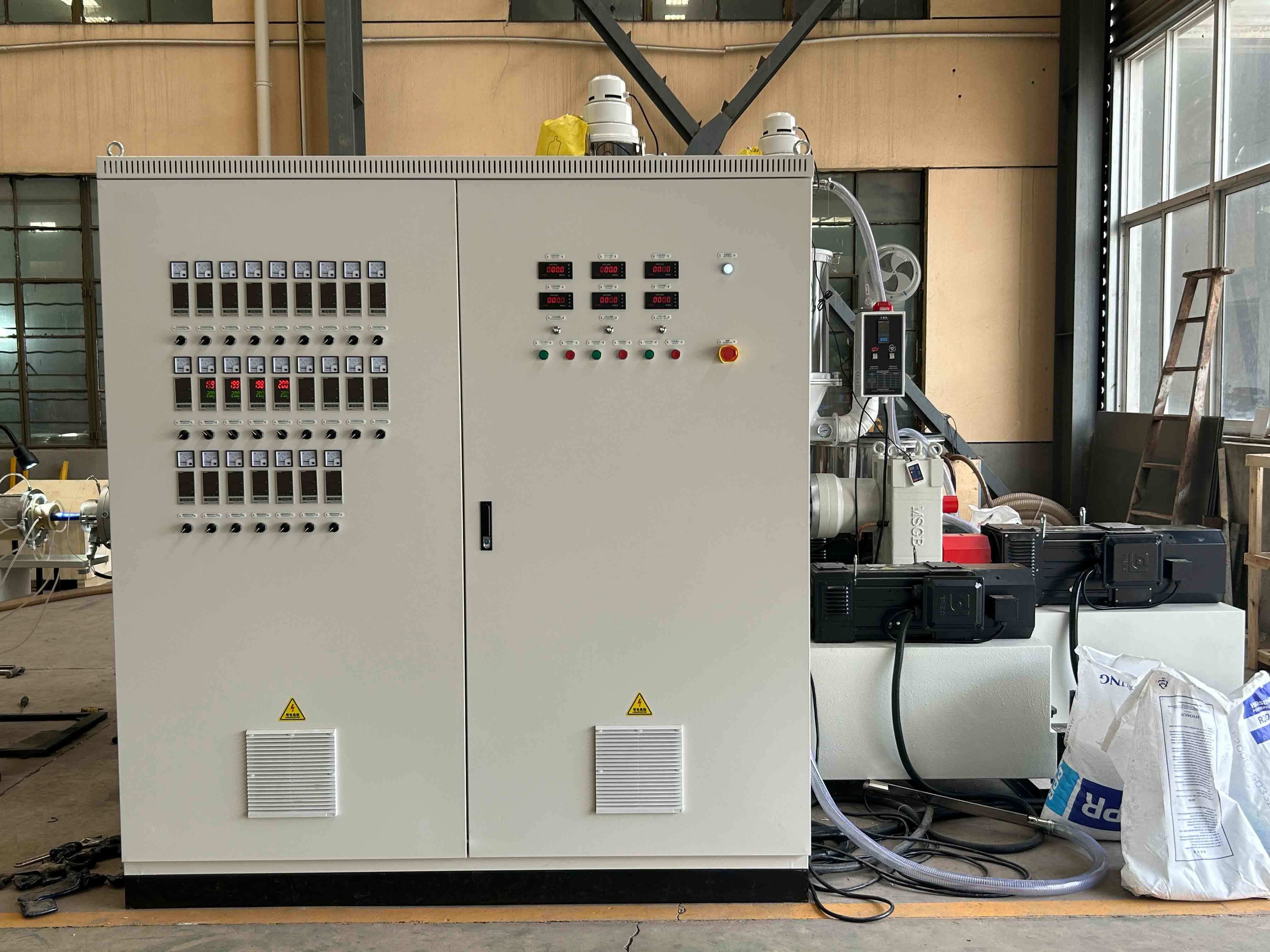

User-Friendly – PLC control system with touchscreen interface enables easy operation and minimal manual intervention.
Durable Pipes – Produces corrosion-resistant, high-temperature (up to 95°C), and pressure-resistant PPR pipes with long service life.
Low Maintenance – Robust construction and high-quality components ensure stable operation with minimal downtime.
Perfect for businesses aiming to produce eco-friendly, leak-proof PPR pipes with competitive efficiency!
Our factory
Our Exhibition
Our goods shipping
|
|
Plastic PPR Pipe Making Machine PPR Pipe Production Line Plastic Pipe Extrusion Machine Images
|
