PLASTIC WINDOW PROFILE EXTRUSION LINE
DETAILS OF EXTRUSION LINE
Our extrusion line has excellent quality and designs for different pvc profile. Because pvc profile customers wants to produce different, so the extrusion line mould is various. Mostly according to the pvc profile size or drawings, we will choose the extruder model, the calibration table length, haul-off machine motor power and cutter method.
PRODUCT DESCRIPTION:
Profile is utilized in different applications like entryways, window, office fixing, inside parcel and embellishment. LANGBO MACHINERY is a main maker of complete plastic profile expulsion line. With creation limit of up to 200 kg/hr and greatest board size of up to 32", Conical Twin Screw Extruders are rumored overall for unrivaled quality creation and empowering higher calcium stacking, consequently diminishing the assembling cost significantly. LANGBO MACHINERY has effectively introduced all the more then 200 Conical Twin Screw Extruder and in excess of 2000 Single Screw Extruder for pvc profiles abroad.
PRODUCT FEATURES

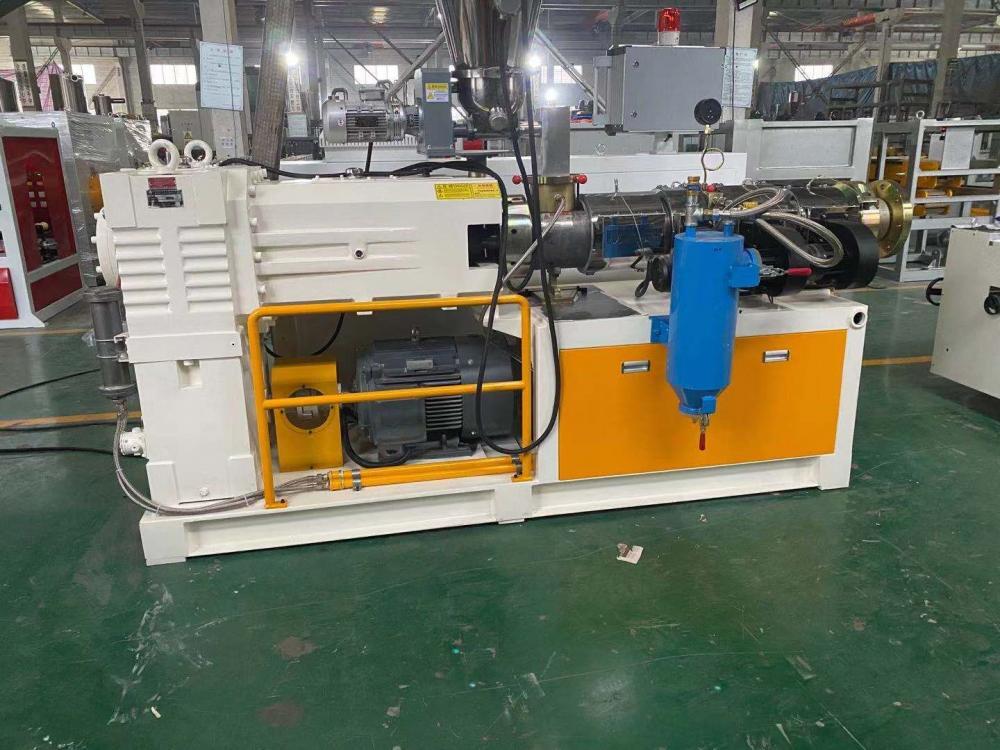

Extruding machine: conical twin-screw extruder is used to ensure high output and efficiency. Many advanced technologies are adopted such as Omron temperature control meter and frequency speed control. The auxiliary equipment such as vacuum pump and hauling motor are all world famous brand with a high quality. Different products can be produced by changing moulds.
APPLICATION
Door Panel Extrusion Line
Window Profile Extrusion Line
Technical Profile Production Line

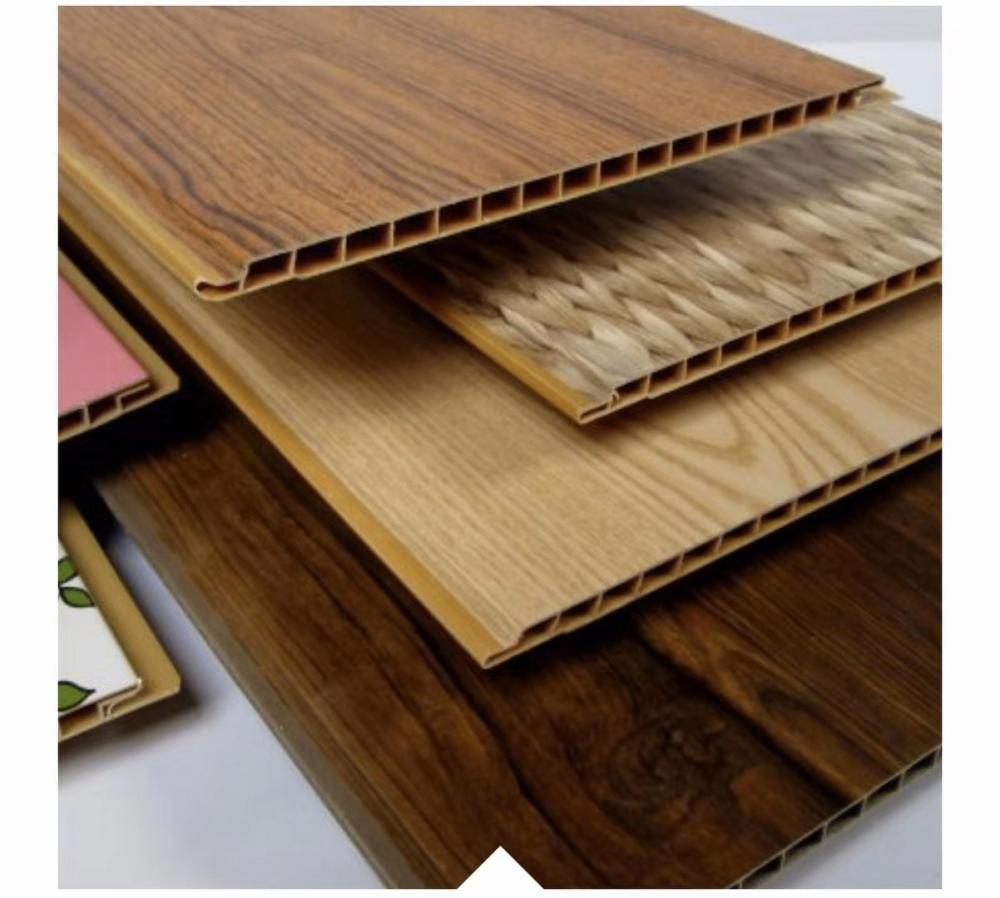

PVC Wall Panel Extrusion Line
SPECIFICATION
The Extruder is the "heart" of the Production Line, it depends not only the Output Capacity but also the most of the energy consumption. The Table below shows the Screw standard of the different Production level.
| Model | SJZ45 | SJZ51 | SJZ65 | SJZ80 | SJZ92 |
| Screw diameter (mm) | 45/100 | 51/105 | 65/132 | 80/156 | 92/188 |
| Screw rotation speed (r/min) | 4-45.5 | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
| Effective length of screw (mm) | 1000 | 1050 | 1430 | 1800 | 2520 |
| Main motor power (kw) | 15 | 22 | 37 | 55 | 90 |
| Barrel heating power (kw) | 12 | 18 | 24 | 36 | 48 |
| Capacity (kg/h) | 95 | 110 | 250 | 380 | 520 |
| Central height (mm) | 1000 |
| Net Weight(kg) | 3000 | 3200 | 5000 | 6500 | 7500 |
